Specifications

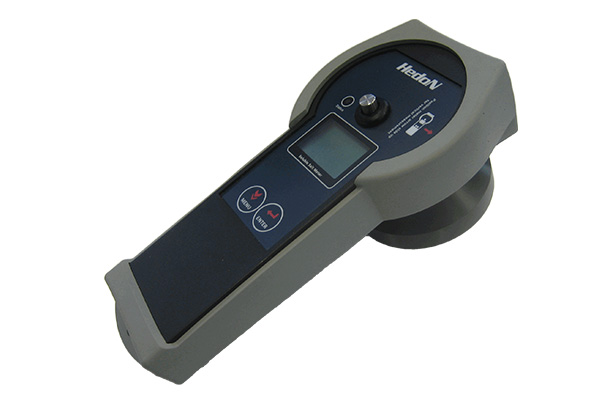

The Soluble Salt Meter is a patented design that provide a hand held, automated method for detection of soluble salts on surfaces.

The Soluble Salt Meter combines surface salt extraction and conductivity measurement in one tool, allowing convenient and ergonomic operation.

Soluble Salt Meter Specifications
Standards Equivalent to ISO Standard 8502-9 (Field method for the conductometric determination of water-soluble salts; The Bresle method) in accordance with NACE SP0508-2010.
Water Injection Method Automated, with simple press of fixed volume dispenser
Dose 3± 0.05 m
Measurement Process Steps 5
Total Process Time 60 seconds (Measurement to Measurement)
Measurement Range 0-100 µS/cm
Resolution 1 µS/cm
Measurement Accuracy ± 3 µS/cm
Surface Temperature Range 5 - 50 °C (41 - 122 °F)
Temperature probe accuracy ± 0,3 °C (± 0,54 °F)
Diameter of curvature:
Standard measuring head >= 44 inch / 1100mm
Measuring head 1 26 <=> 42 inch / 650 <=> 1050 mm
Measuring head 2 14 <=> 24 inch / 350 <=> 600 mm
Measuring head 3 8 <=> 12 inch / 200 <=> 300 mm

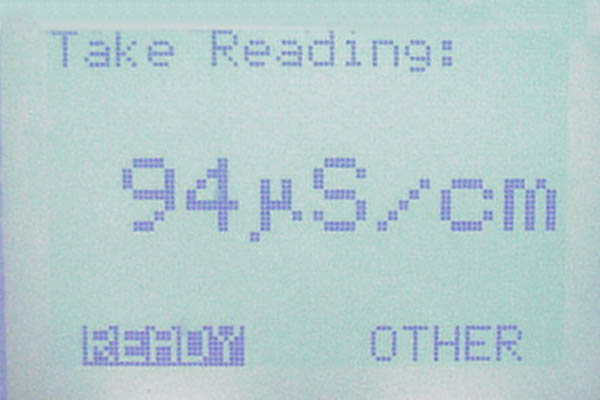

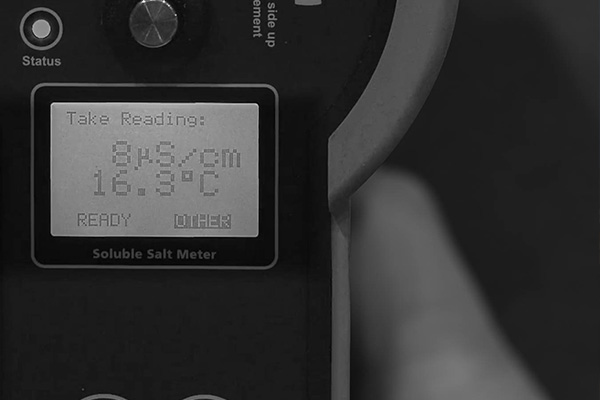

Readout µS/cm or mg/m2
Measurement Area 1250 mm2 (circular) fixed footprint
Attachment Method Magnetic with silicone seal (no effect on surface quality; proven to seal over deep pits)
Memory Holds up to 1000 measurements (10 batches of up to 100 measurements each)
Connectivity via USB with PC or laptop
Power Supply Lithium-ion rechargeable battery
IP Rating IP54
Dimensions(Instrument only) 21 x 10 x 8 cm
Weight (Instrument only) 780 gr.

The presence of soluble salts on a surface is detrimental to applied protective coatings.

As such, there are set stringent requirements for maximum allowable soluble salt concentrations for various applications. In order to test for surface cleanliness, surface contaminants must be extracted and analyzed. Find all the information in our brochure.

General accepted criteria

NORSOK M-501 20-50 mg/m2
DNV RP-F102 20 mg/m2
IMO (PSPC) MSC-215(82) 50 mg/m2
IMO (PSPC) MSC.244(83) 50 mg/m2
NAVSEA FY-12 (CH1) 009-32 30-70 µS/cm
